Company Overview
Founded ： Registered in 2013’Feb . Major investors is from Ytec 久元電子 (6261) and
Hermes Group : Episil 漢磊 (3707).(Taiwan listed company)
Capital ： USD$ 23.5 Million
Major Business Focus ： Infrared Emitter and Detector
Photo Coupler
Visible LED
Employee ： ~270 Globally
Factory Location ： Xiamen, China, Total Capacity is 120KK/M
(CTM owner for PCB/Coupler/MOSFET)
Global Network
Germany
China
USA
Korea
Taiwan
Malaysia
History
2013
2013
2013
2014
2015
2015
2017
2018
◎ 2013’May, CT Micro setup
◎ 2013’Nov, IR/Photo Coupler MP
◎ 2013’Dec, ISO9001:2008
◎ IR/Coupler shipped more than 10KK/M
◎ 2015’Mar, MOSFET MP
◎ 2015’July, ISO14001 and OHSAS18001
◎ 2017’Apr, ISO/TS16949 LOC
◎ 2018’Jun, IATF16949:2016
Why CT Micro
◎ People,
R&D with more than 15 years of photo coupler and infrared product
experience. Manufacturing and engineering team from Fairchild and Vishay with
more than 15 years of assembly experience.
◎ CT can design our own Photo Transistor and Diode.
◎ Professional Optical R & D with optical simulation software for quicker, precise &
high quality optical products; be it standard or customized version.
◎ Partnership with Energictek for MOSFET design/development and
complement with Episil/maxchip for high quality and stable
products.
Why CT Micro
Quality Policy
◎
Systematic Development and Production (ISO9001:2015 and IATF16949)
(IATF16949 only for IR and Photo Coupler)
◎
Green Initiatives (ISO14001 and OHSAS18001)
◎ Zero defect approach
◎ Build by Quality during development
◎ Safety House for Photo coupler(UL/VDE/CQC)
http://www.ct-micro.com/quality10.php?id=2

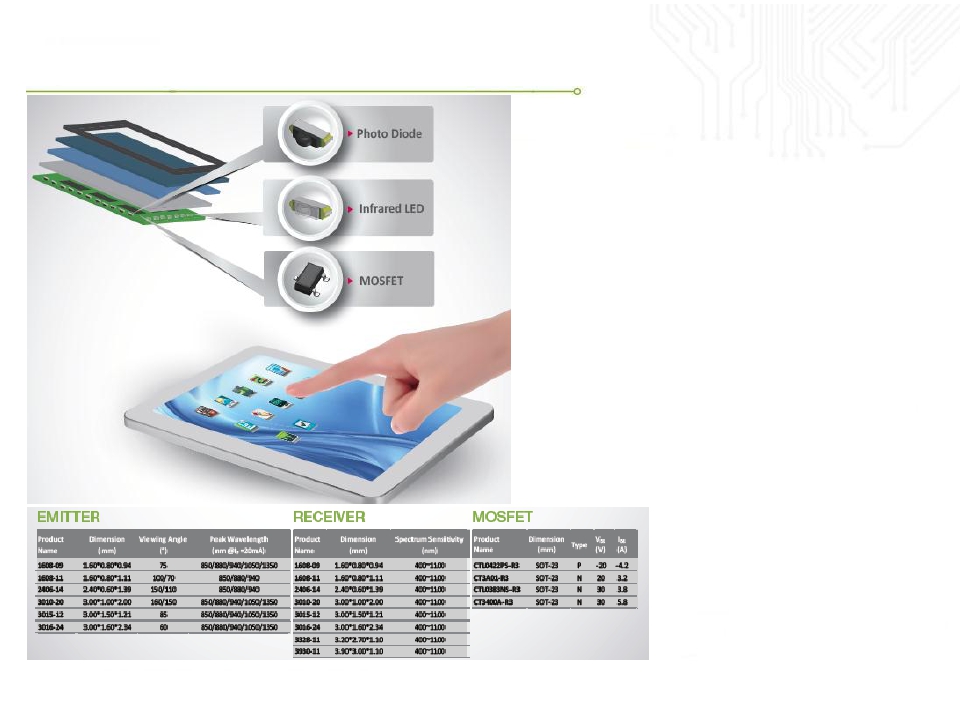

IR Touch Application
Infrared LED working with
Photo Diode or Photo Transistor

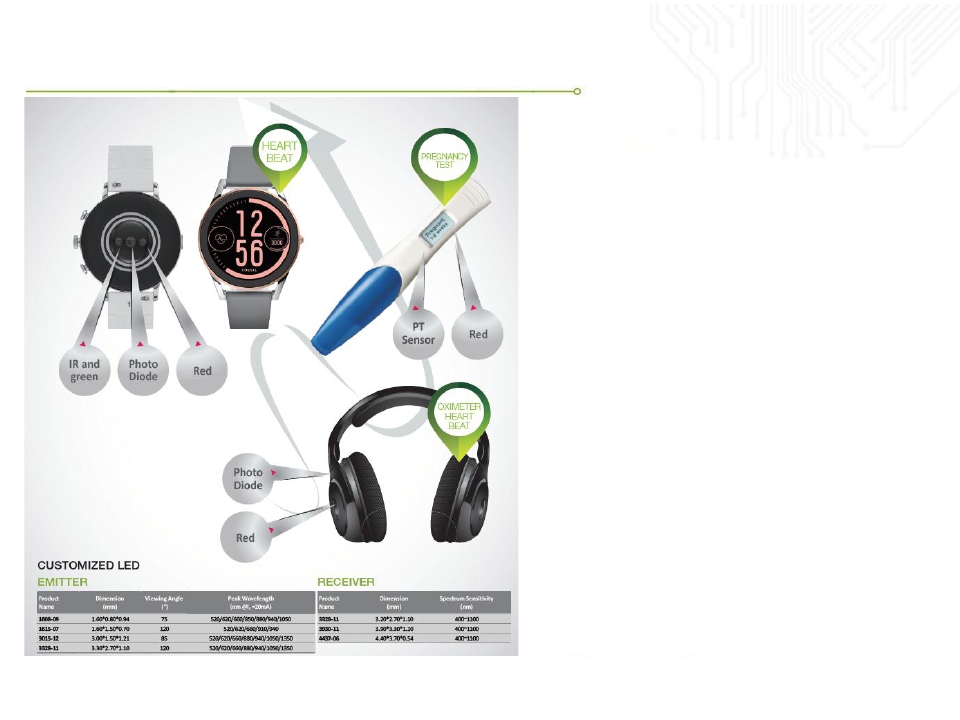

Smart Wear Application
For health management application,
Customer can use
blue
/
green
/
red
/IR/VCSEL as emitter,
and Photo Diode as receiver per customer
requests.

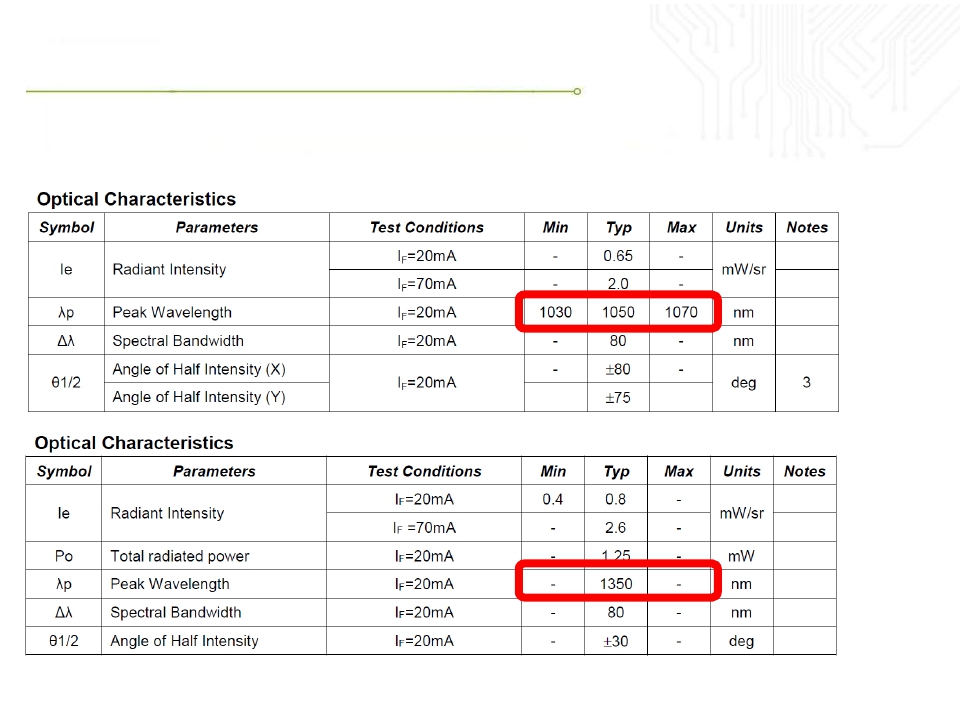

1050nm/1350nm IR LED
Special wavelength for customized applications
Next ? 1400/1600nm Samples are ready
Classification of Light Detector
| Item |
Photo Resistor |
Photo Transistor |
Photo Diode |
Analog Light
Sensor |
Digital Light
Sensor |
| Outline |
|
|
|
|
|
Functional
Block Diagram |
|
|
|
|
|
| Output Type |
Resistance |
Current |
Current |
Current |
ADC Count |
Response
Spectral |
Human Eye |
Non-Human Eye |
Non-Human Eye |
Human Eye |
Human Eye |
| Linearity |
Poor |
Good |
Excellent |
Excellent |
Excellent |
Temperature
Response |
Poor |
Poor |
Better than PT |
Good |
Good |
| Response Time |
Slow |
Slow |
Fast |
Slow |
Slow |
| Cost |
Low |
Low |
Low |
High |
High |
Ambient Light Sensor
APTP1708T06
Electrical Characteristic
◎
Current output
◎
Supply voltage range from 2.5V to 5.5V
◎
Operating temperature from -40 °C to +85 °C
Optical Characteristic
◎
Spectrum close to human eye response.
◎
Very low response in infrared region.
High Performance
Ambient Light Sensor
APS1616O04
Electrical Characteristic
◎
I2C interface (400kHz/s)
◎
Supply voltage range from 1.8V to 3.6V
◎
Operating temperature from -40 °C to +85 °C
◎
ADC resolution 16-bits
Optical Characteristic
◎
R
G
B
W
IR
five channel
◎
Very high sensitivity 0.001 lux
◎
Very wide dynamic range 300K lux
◎
FOV over ± 50 degree
High Accuracy
◎
Illuminance (lux) error within ± 5%
◎
Correlated color temperature (CCT)
error within ± 5%
◎
Color difference (duv) within 0.005
◎
Light source type determination
1.6*1.6*0.45mm
Proximity Sensor
New….
Low Consumption
◎
12.5mA
VCSEL driving current.
◎
Total current can be within 0.2mA
Low Crosstalk
◎
VCSEL
based IR emitter w/ very small angle.
◎
Build-in optical filter to reject the crosstalk.
Small Size
◎
Package dimension is
2.84mm
×
1.44mm
×
0.65mm
◎
Pitch of PS & VCSEL is 0.96mm
CT DMC TM
Photo Coupler
Traditional Over-Under
CT DMC TM
Photo Coupler
CT Micro Double-Molded Co-Plannar (DMC?)
US9,685758 B2
Features
◎ Fixed Isolation Gap
◎ Propriety Molding Compound
◎ Special Inner mold design to improve
transfer ratio
◎ Special Silicon gel for Transfer Ratio
improvement
Coupler construction
Traditional Over-Under
CT DMC ?
Co-Planar
Light transfer type: face to face
Hard process than Co-planar
Light transfer type: reflection
The easiest coupler process
The coupler construction design have to follow the safety house rule. Over
tolerance, and bad process control will be caused isolate fail.
Coupler FMEA
The distance through isolation of coupler is
≧0.4mm
The product LongCreepage is one
of the super thin package. All the
tolerance are restricted by the
package limit and safety request.
High of wire bond also one of the
key inspection.
Confidential
The through distance of CT DMC ?
package is trustworthy due to the
distance has done when the lead
frame forming. There is no need to
control by process.
CT DMC TM
Photo Coupler
| |
Pros and Cons |
|
|
| |
ConventionalUnder
Over-Under |
Traditional Co-Planar |
CT-DMCTM PKG |
| CMR 共模抑制 |
Normal 一般 |
Good 很好 |
Good 很好 |
Isolation Voltage
高壓絕緣 |
Unstable 不穩(wěn)定 |
Stable & Good
穩(wěn)定而且很好 |
Stable & Good
穩(wěn)定而且很好 |
Process
封裝製程 |
Hard 困難 |
Easy 簡單 |
Easy 簡單 |
Outline size
外觀尺寸 |
High Restriction
限制多 |
Can go small and thinness
可以做超薄且小型化的尺寸 |
Can go small and thinness
可以做超薄且小型化的尺寸 |
| Cost 成本 |
Low 低 |
High 高 |
Low 低 |
CT DFN TM
Photo Coupler
Features
◎ The Max thickness is 1.5mm
(max 4.2*2.7*1.5mm for one channel)
◎ Good operating temperature range
-55 ℃ ~125 ℃
◎ External creepage >2.8mm
2.5kV/min with intenal creepage >0.4mm
◎ Low input current with Good CTR
100%~400% CTR @ I F
=1mA
|
